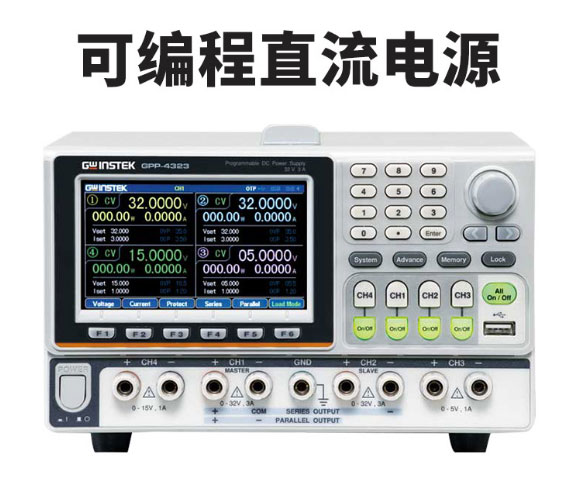

GPP-4323 |

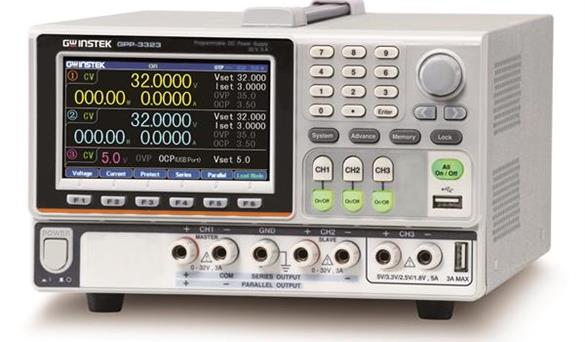

GPP-3323 |
GPP-2323 |
GPP-1326 |
| 输出模式 |
| 通道 |
CH1 |
CH2 |
CH3 |
CH4 |
CH1 |
CH2 |
CH3 |
CH1 |
CH2 |
CH1 |
| 电压 |
0~32V |
0~32V |
0~5V |
0~15V |
0~32V |
0~32V |
1.8/2.5/3.3/5.0V |
0~32V |
0~32V |
0~32V |
| 电流 |
0~3A |
0~3A |
0~1A |
0~1A |
0~3A |
0~3A |
5A |
0~3A |
0~3A |
0~6A |
| Tracking 串联电压 |
0~64V |
---- |
0~64V |
---- |
0~64V |
---- |
| Tracking 并联电流 |
0~6A |
0~6A |
0~6A |
| 恒压操作 |
| 线性调整率 |
≦0.01%+3mV |
| 负载调整率 |
≦0.01%+3mV(rating current≤3A)
≦0.02%+5mV(rating current > 3A) |
| 纹波 & 噪声(5Hz - 1MHz) |
≤350μVrms/2mVpp |
≤1mVrms |
≤350μVrms/2mVpp |
≤2mVrms |
≤350μVrms/2mVpp |
≤500μVrms/6mVpp |
| 恢复时间 |
≦50μs |
≦50μs |
≦50μs |
≦100μs |
| 恒流操作 |
| 线性调整率 |
≦0.2%+3mA |
| 负载调整率 |
≦0.2%+3mA |
| 纹波 & 噪声 |
≦2mArms |
≤2mArms |
≤2mArms |
≤4mArms |
| 编程分辨率 |
| 编程电压分辨率 |
1mV |
1mV |
- |
1mV |
1mV |
| 编程电流分辨率 |
0.1mA |
0.1mA |
- |
0.1mA |
0.2mA |
| Tracking操作(CH1,CH2) |
| Tracking 误差 |
≦0.1%+10mV of Master(0~32V) No Load , with Load add load regulation≦100mV) |
| 并联调整率 |
Line: ≦0.01%+3mV |
| |
Load:≦0.01%+3mV(rating current≦3A) |
| |
≦0.02%+5mV(rating current＞3A) |
| 串联调整率 |
Line: ≦0.01%+5mV
Load:≦100mV |
| 纹波 & 噪声 |
≤1mVrms |
| CH3 Operation for (3323) |
| 输出电压 |
1.8V/2.5V/3.3V/5.0V, ±5% |
| 输出电流 |
5A |
| 线性调整率 |
≦3mV |
| 负载调整率 |
≦5mV |
| 纹波 & 噪声 |
2mVrms(5Hz~1MHz) |
| 瞬态恢复时间 |
100us |
| USB 端口输出 |
1.8V/2.5V/3.3V/5.0V, ±0.35V, 3A |
| Meter |
| 电压分辨率 |
0.1mV |
0.1mV |
- |
0.1mV |
0.1mV |
| 电流分辨率 |
≤±(0.03% + 10mV) |
≤±(0.03% + 10mV) |
- |
≤±(0.03% + 10mV) |
≤±(0.03% + 10mV) |
| ≤±(0.30% + 10mA) |
≤±(0.30% + 10mA) |
- |
≤±(0.30% + 10mA) |
≤±(0.30% + 10mA) |
| 设置/回读 精度 |
≤±(0.03% + 10mV) |
≤±(0.03% + 10mV) |
- |
≤±(0.03% + 10mV) |
≤±(0.03% + 10mV) |
| ≤±(0.30% + 10mA) |
≤±(0.30% + 10mA) |
- |
≤±(0.30% + 10mA) |
≤±(0.30% + 10mA) |
